Monitor Arm, North Bayou

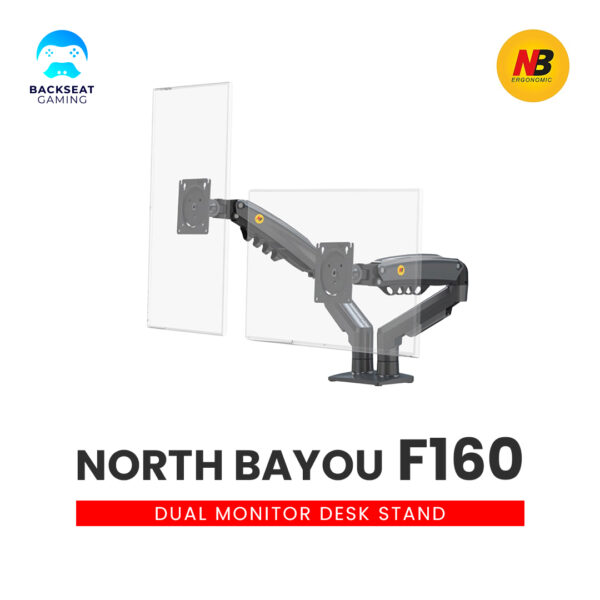

NB ERGONOMIC F160 Dual Monitor Arm

Name: NB ERGONOMIC F160 Dual Monitor Arm
Brand: North Bayou
SKU: NB-F160
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Add to wishlist

Compare

Key Features:

Dual-arm full motion monitor mount — single shared base
Each arm fully independent with its own gas spring
Screen size: 17–27 inches per arm | Load: 2–9KG per arm
Tilt +85°/-30°, swivel ±90°, rotation 360° per arm
Height adjustment: 260mm (10″) per arm
Max extension: 530mm (20.8″) per arm
Portrait and landscape mode supported on each arm
VESA 75×75mm / 100×100mm compatible
VESA plate size: 118×118mm
Manual tension adjustment per arm via screw
Integrated cable management through both arms
C-Clamp + Grommet installation — both included
Fits desk thickness up to 90mm (3.54″)
Grommet hole diameter: 10–50mm
Aircraft-grade aluminium alloy construction

Price range: ₨ 6,999.00 through ₨ 10,199.00
You save (%)

Variant

Clear

Quantity

Compare

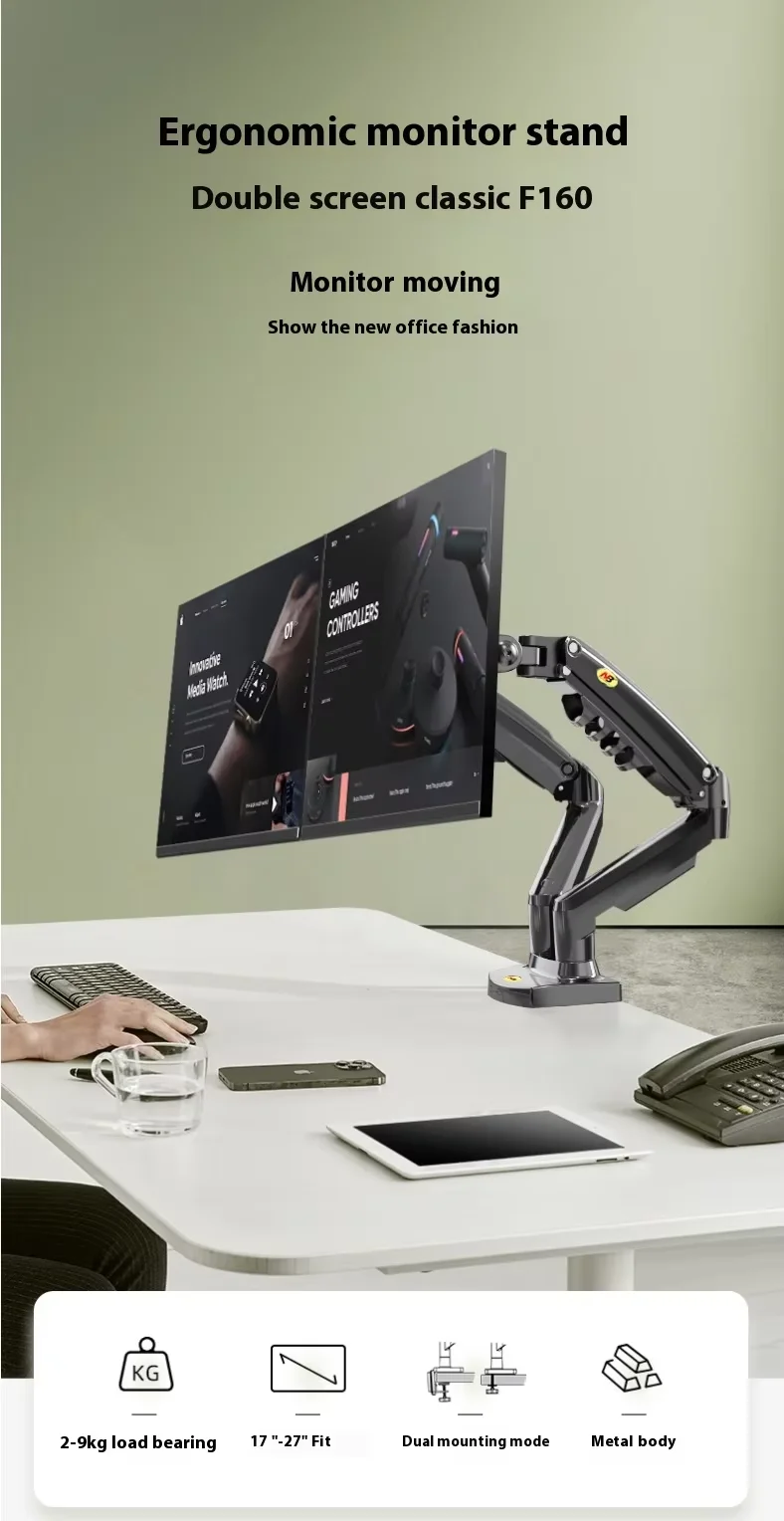

NB ERGONOMIC F160 Dual Monitor Arm — Full Motion Desk Mount for Two 17–27 Inch Monitors

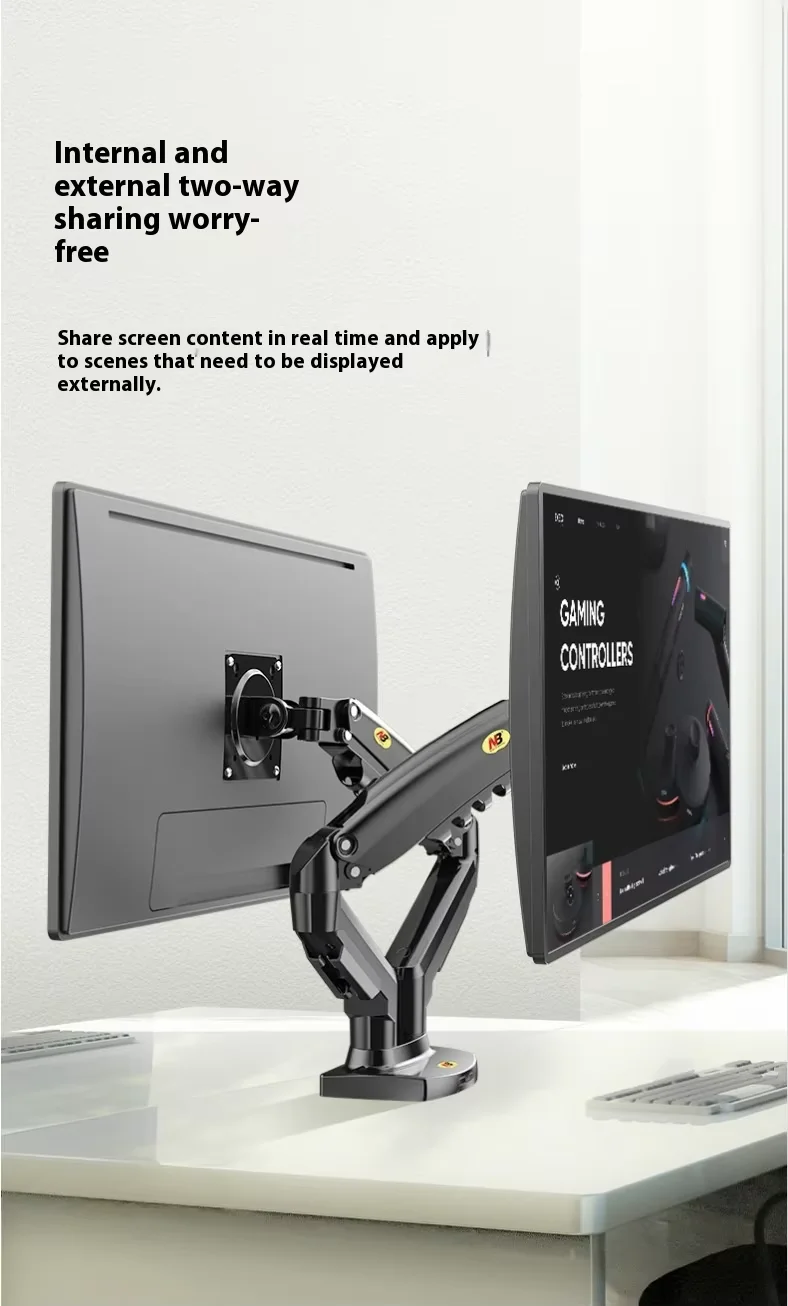

The NB ERGONOMIC F160 is a dual-arm full-motion monitor mount designed for users who want to run two screens with complete positional freedom. Both arms share a single compact base and each is powered by its own independent gas spring — giving each screen its own full range of motion without any compromise. In addition, each arm supports monitors from 17 to 27 inches with a load capacity of 2 to 9KG, covering the vast majority of standard and gaming monitors currently available.

As a result of its independent dual-arm design, each screen can be positioned at a completely different height, angle, depth, and orientation. Furthermore, the single-base design means only one clamp or grommet point is needed on your desk — keeping the installation footprint minimal. Check out our full range of Monitor Arms at Backseat Gaming, or learn more on the NB ERGONOMIC official website.

Who Should Buy the NB ERGONOMIC F160?

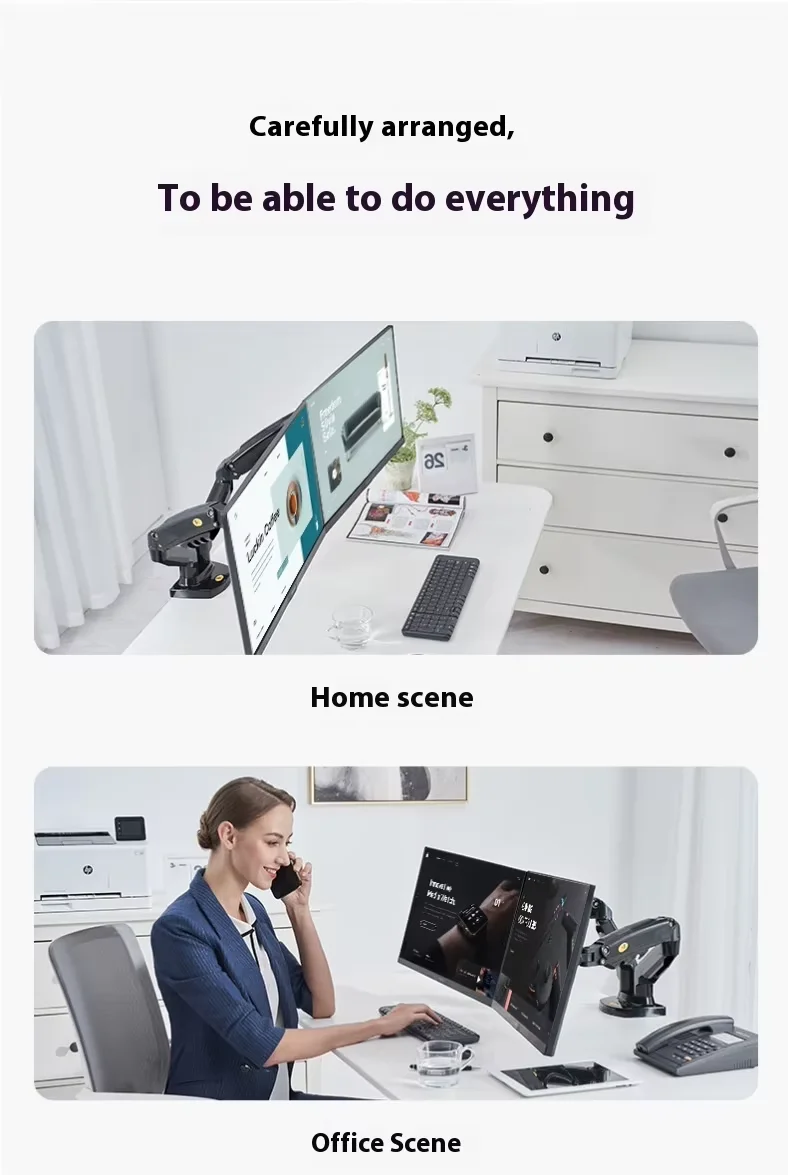

Dual-monitor users who want independent full-motion control of each screen

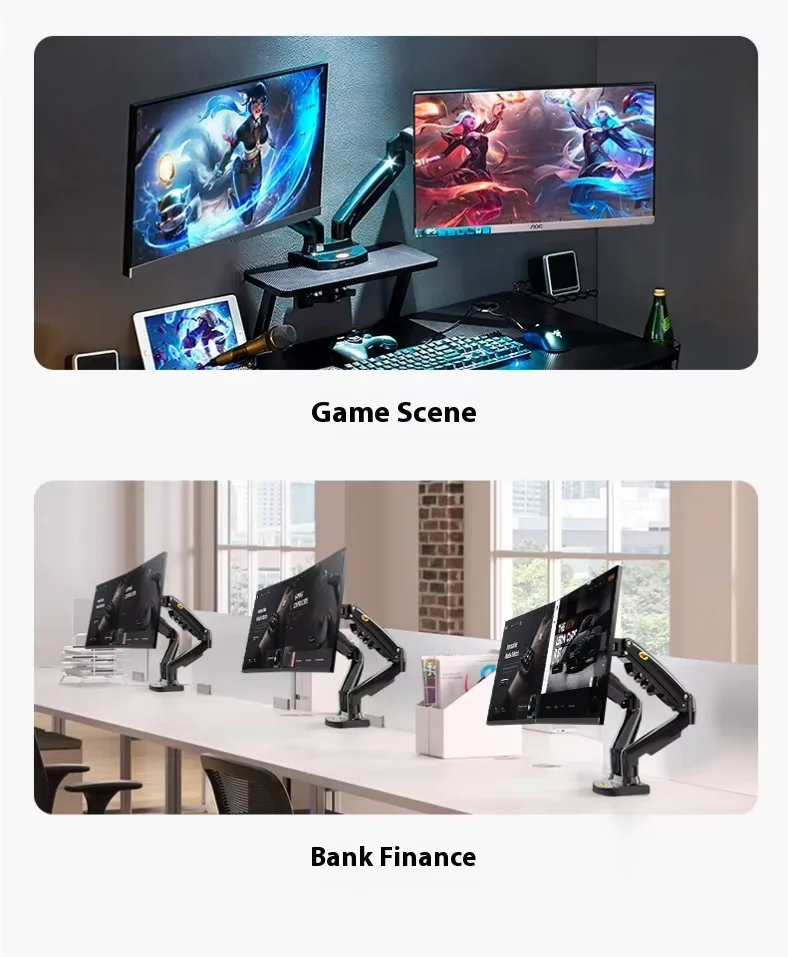

Gamers running a primary display and a secondary screen for chat, stats, or streaming
Office professionals who need two screens for multitasking and productivity
Creators and editors who benefit from a main editing screen and a reference display
Anyone looking to free up desk space by removing two bulky monitor stands

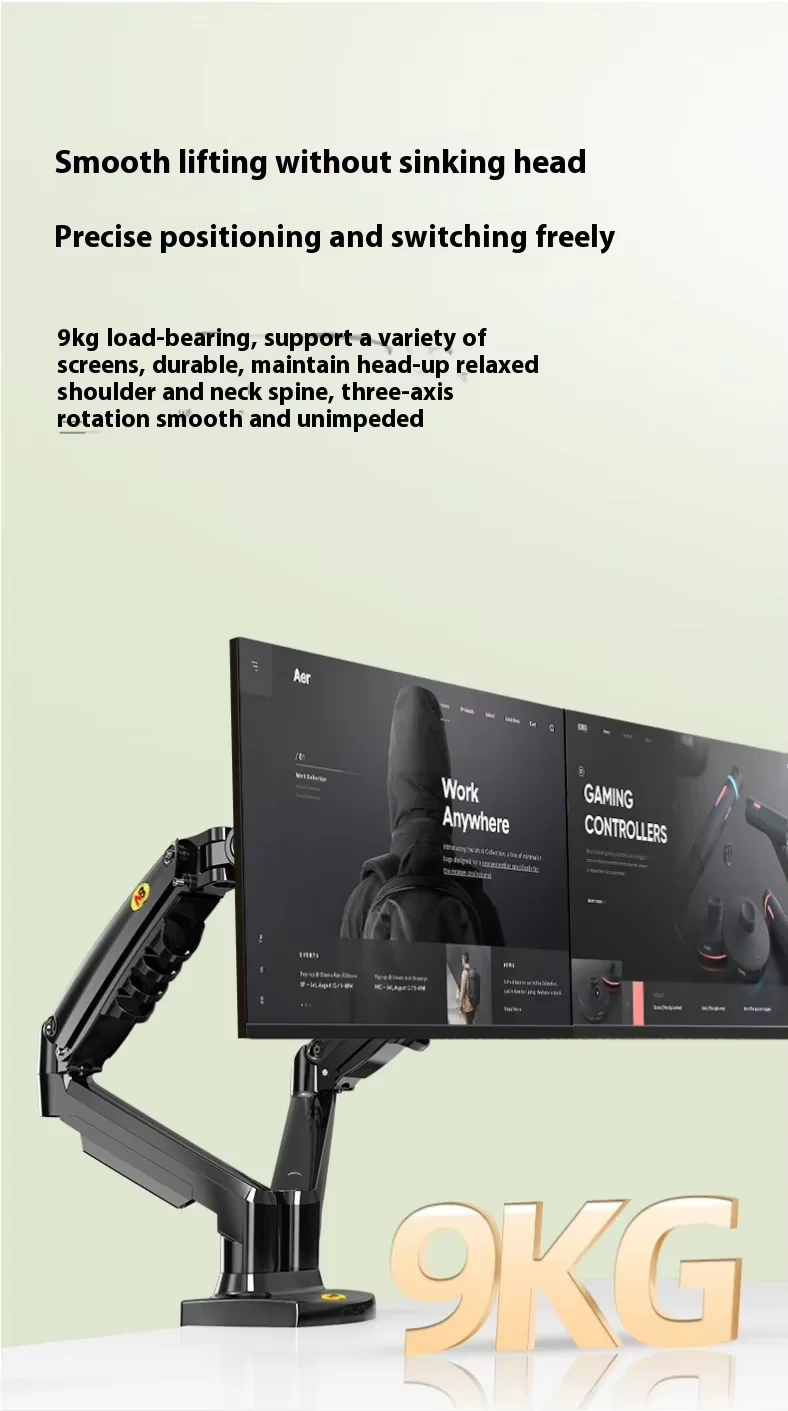

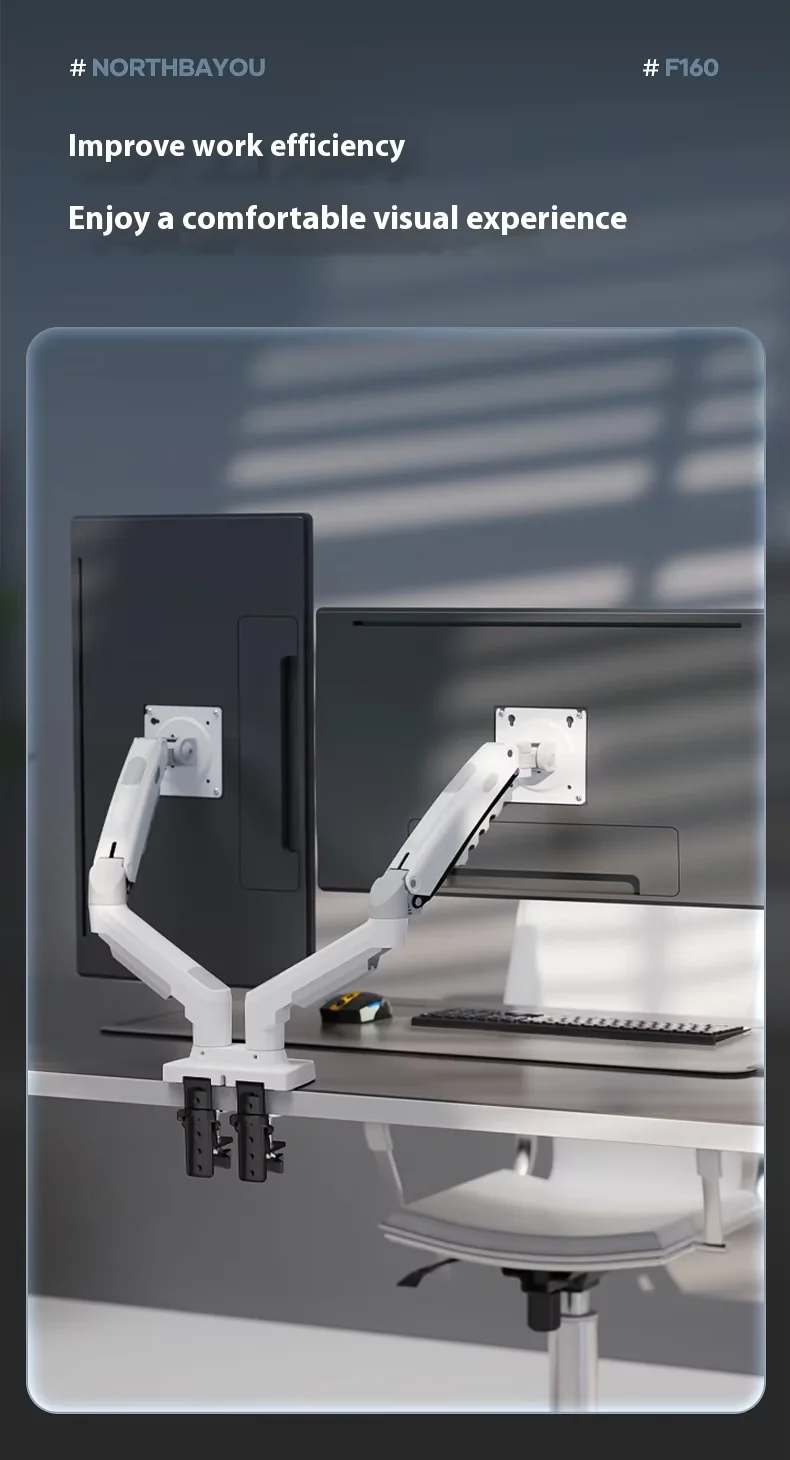

NB F160 — Two Independent Arms, Full Motion on Each

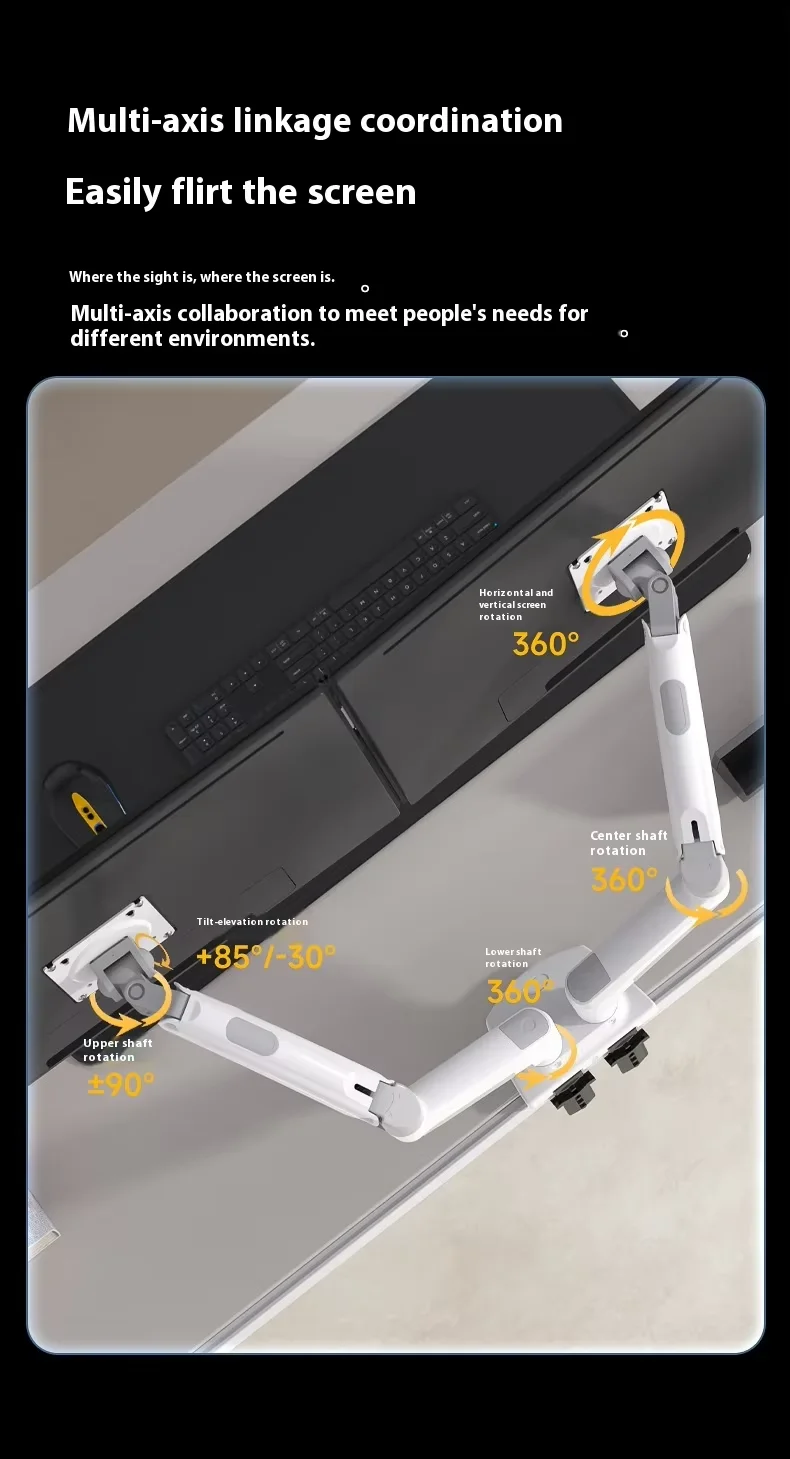

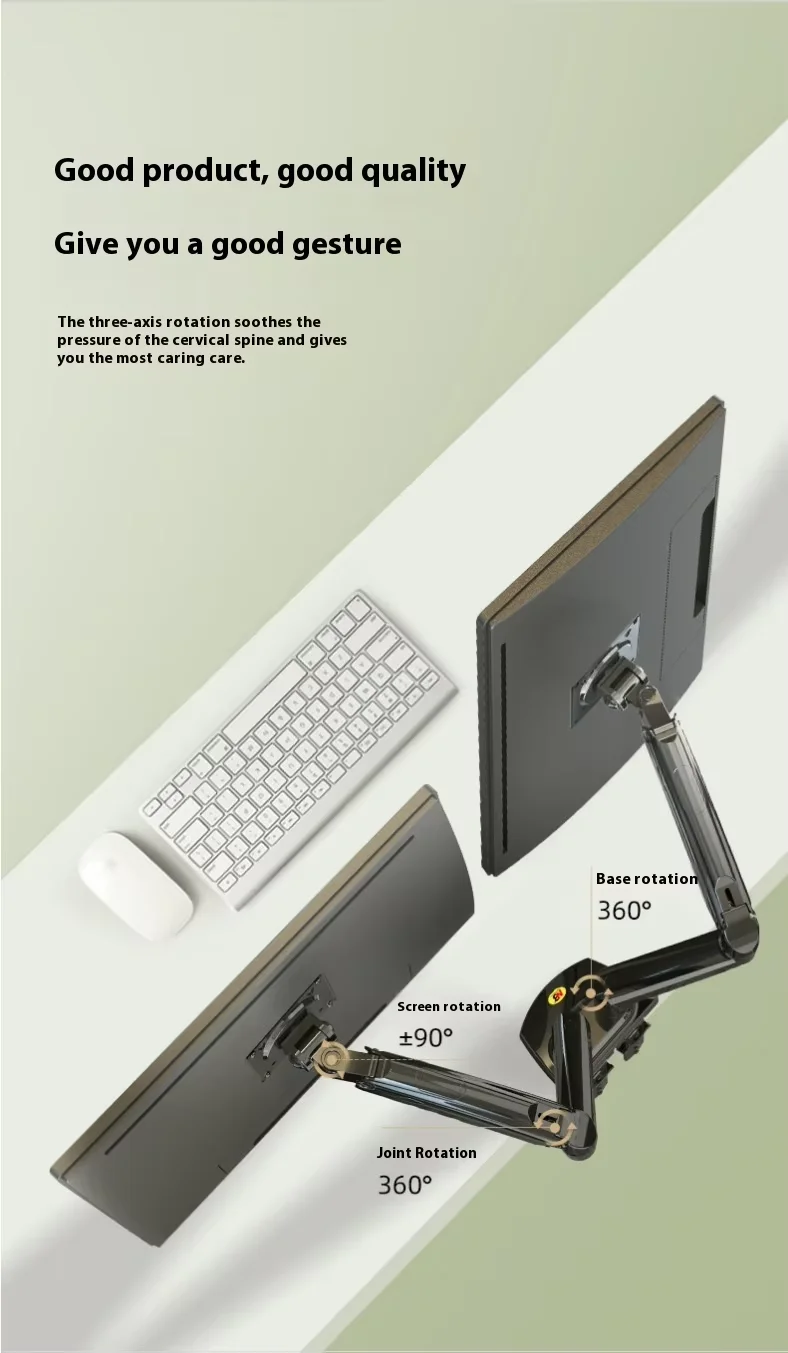

Each arm of the NB ERGONOMIC F160 operates completely independently with its own gas spring. In addition to gas spring height adjustment, each screen can be tilted, swiveled, and rotated to your preferred angle without affecting the other. As a result, you can run one screen in landscape and the other in portrait, set them at different heights, or angle them inward for a more immersive dual-screen experience.

Tilt (per arm)+85° / -30°

Swivel (per arm)±90°

Rotation (per arm)360° (Landscape / Portrait)

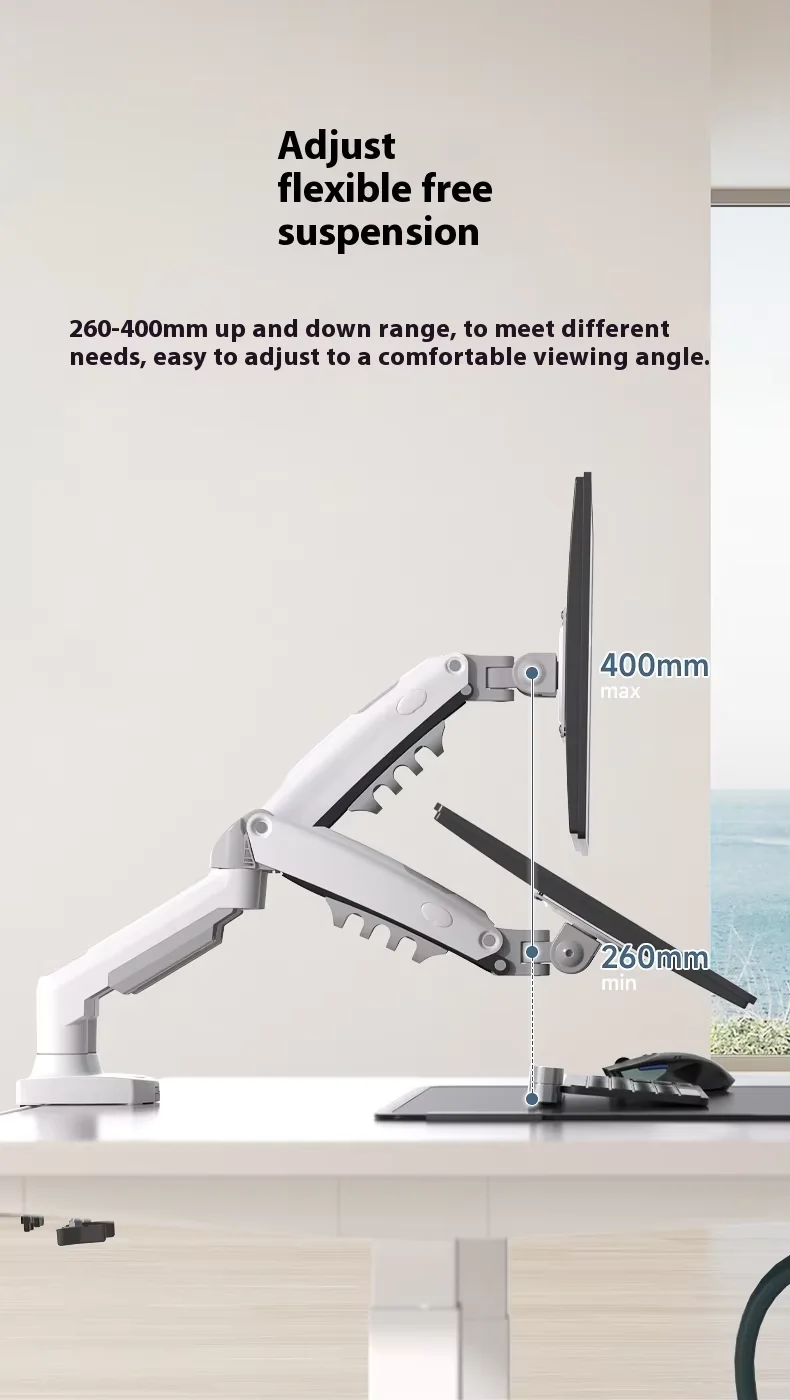

Height Adjustment260mm (10″) per arm

Max Extension530mm (20.8″) per arm

Load Capacity2–9KG per arm

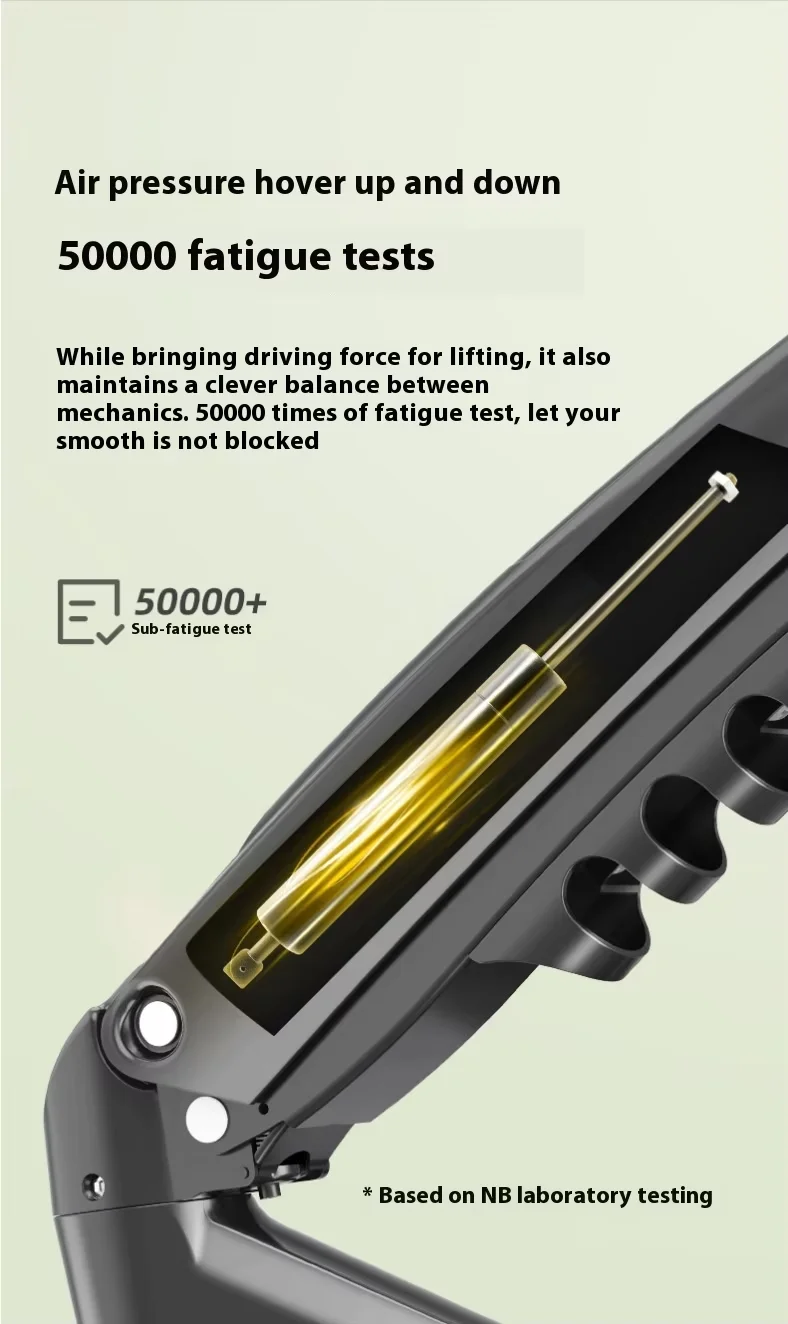

NB F160 — Gas Spring System for Effortless Adjustment

The NB ERGONOMIC F160 uses a precision gas spring mechanism on each arm. Once the tension is set to match your monitor’s weight, repositioning is smooth and effortless — simply push or pull the screen to the desired height and it holds position instantly. Furthermore, the tension is manually adjustable via a screw on each arm, so the system can be recalibrated if you change monitors later.

Note: Do not adjust the tension screw without a monitor mounted on the arm, as the spring may snap upward unexpectedly.

VESA Compatible — Fits Most Monitors

The NB ERGONOMIC F160 is compatible with the two most common VESA mounting patterns — 75×75mm and 100×100mm. In addition, the VESA plate measures 118×118mm. However, curved monitors or monitors with recessed VESA holes may require longer screws or spacers not included in the box. For standard flat monitors with exposed VESA holes, installation is fully straightforward and tool-guided.

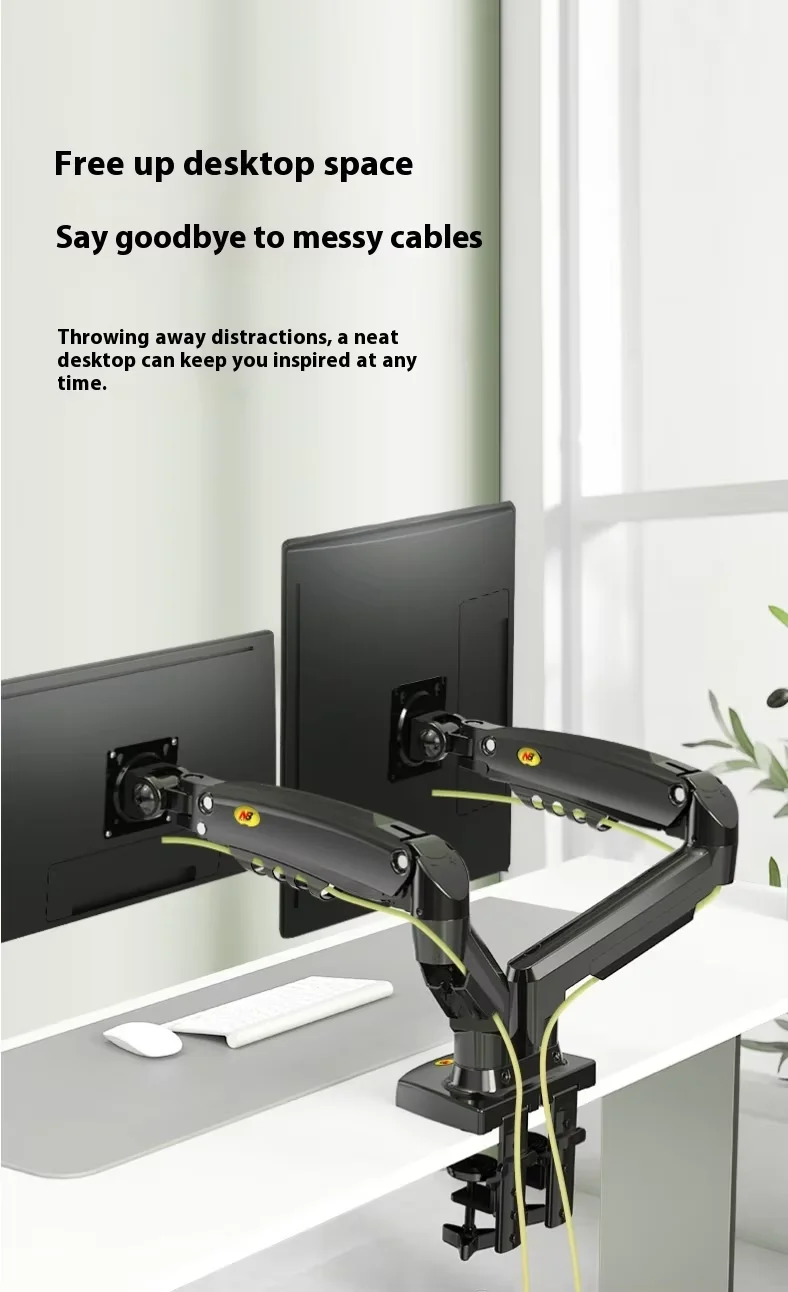

Built-In Cable Management

The NB ERGONOMIC F160 features integrated cable management channels running through both arms. As a result, monitor cables are routed neatly out of sight from screen to desk. Furthermore, this keeps your workspace clean and organized with no loose wires running across the surface.

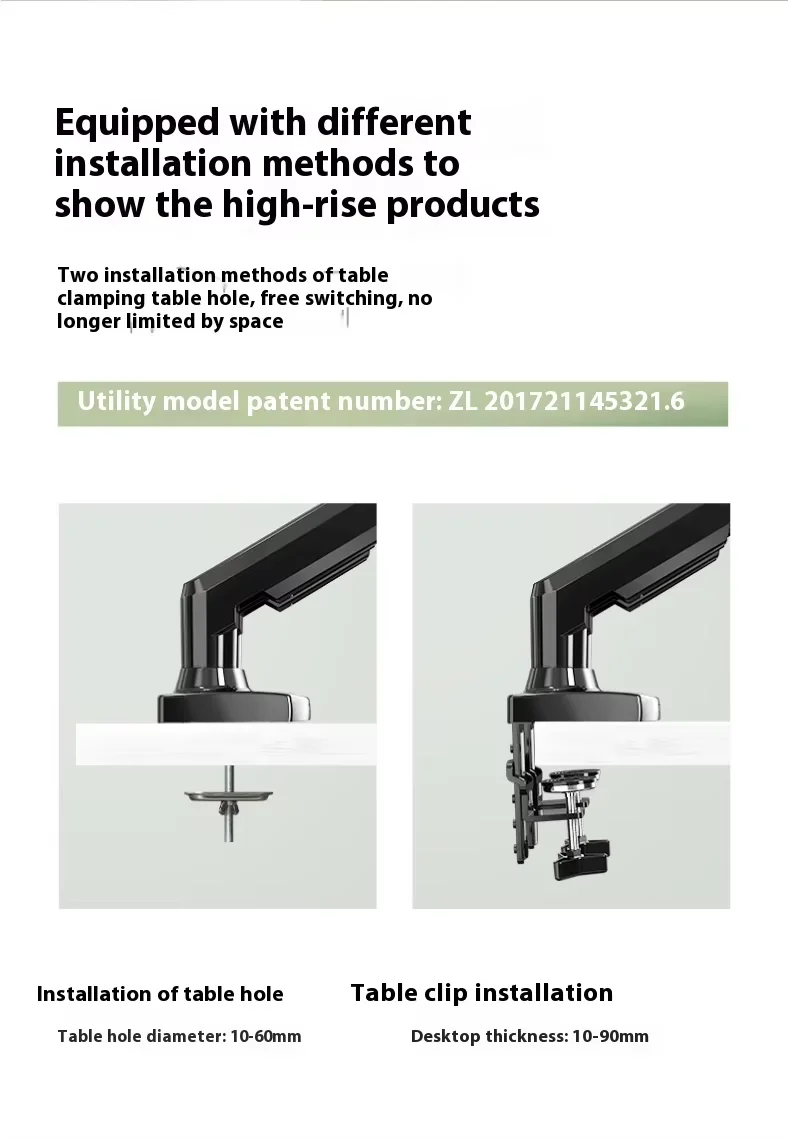

Single Base, Dual Arms — Clamp or Grommet

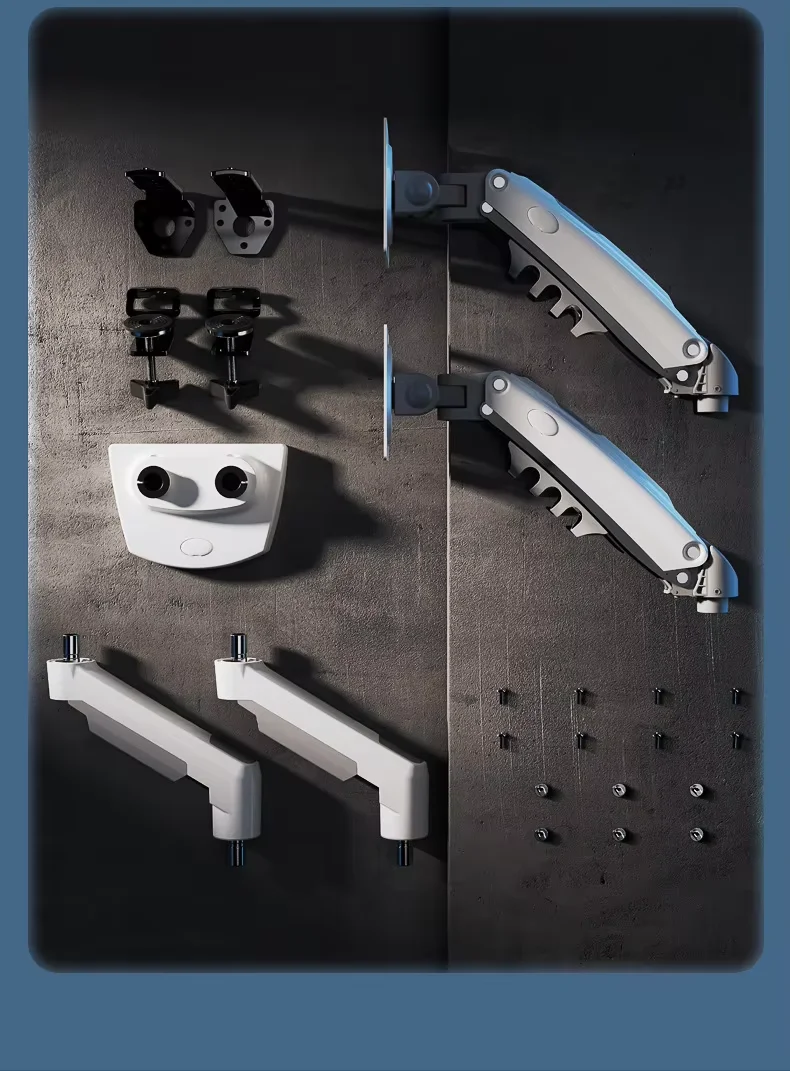

Both arms of the NB ERGONOMIC F160 share a single compact base, which means only one mounting point is needed on your desk. In addition, the base supports both installation methods — both are included in the box:

C-Clamp — clamps to the edge of the desk, no drilling required, fits desk thickness up to 90mm (3.54″)
Grommet — inserts through an existing desk hole (diameter 10–50mm) for a cleaner, more permanent installation

As a result, the single-base design keeps the desk footprint minimal while still giving both screens their full independent range of motion.

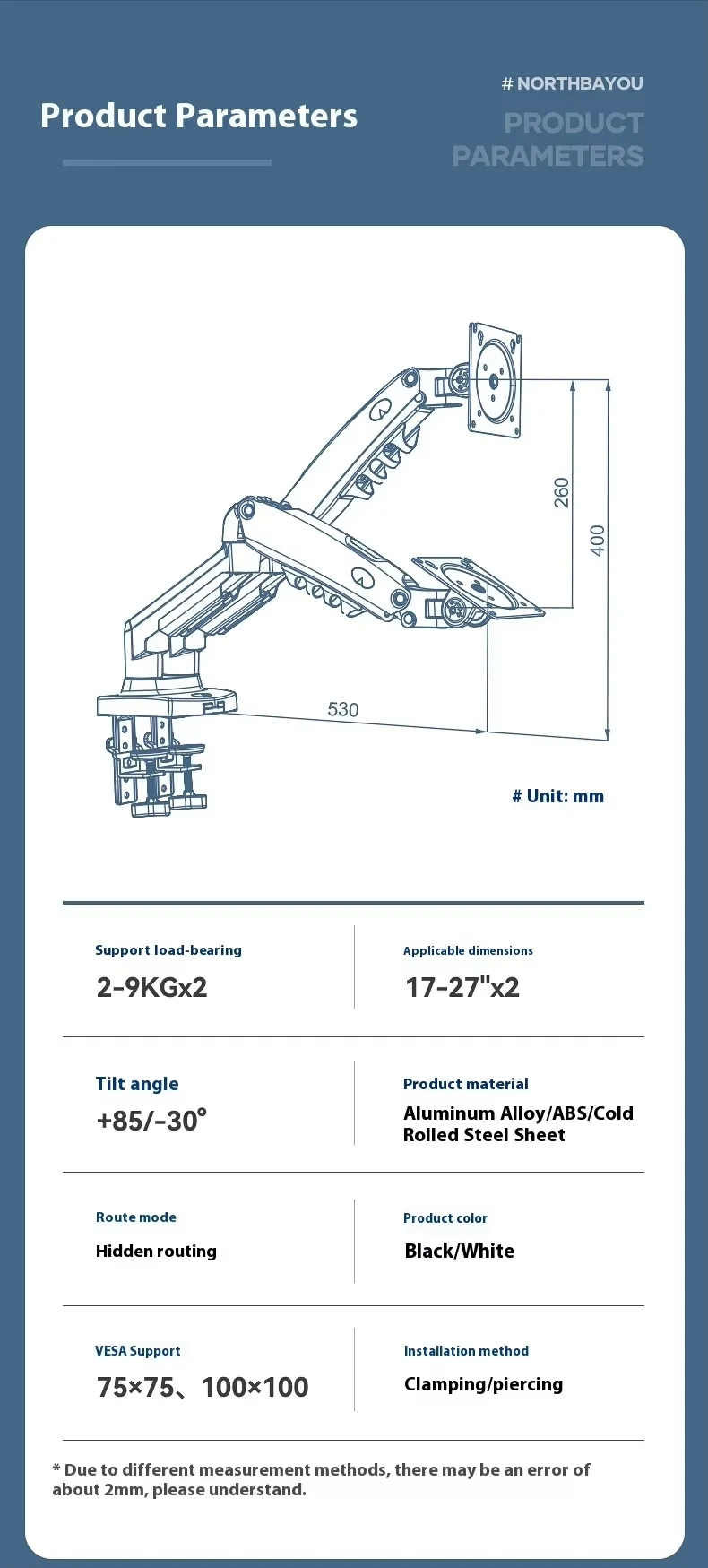

Technical Specifications

Max Extension (per arm)530mm (20.8″)

Grommet Hole Diameter10–50mm (0.39″–1.97″)

Model

NB ERGONOMIC F160

Configuration

Dual Arm — Single Shared Base

Screen Size (per arm)

17–27 Inches

Load Capacity (per arm)

2–9KG (4.4–19.8 lbs)

Tilt (per arm)

+85° / -30°

Swivel (per arm)

±90°

Rotation (per arm)

360° (Landscape / Portrait)

Height Adjustment (per arm)

260mm (10″)

VESA Compatibility

75×75mm / 100×100mm

VESA Plate Size

118×118mm

Spring Type

Gas Spring (Tension Adjustable per arm)

Installation

C-Clamp / Grommet — Single Base (both included)

Desk Thickness (Clamp)

Up to 90mm (3.54″)

Cable Management

Integrated — through each arm

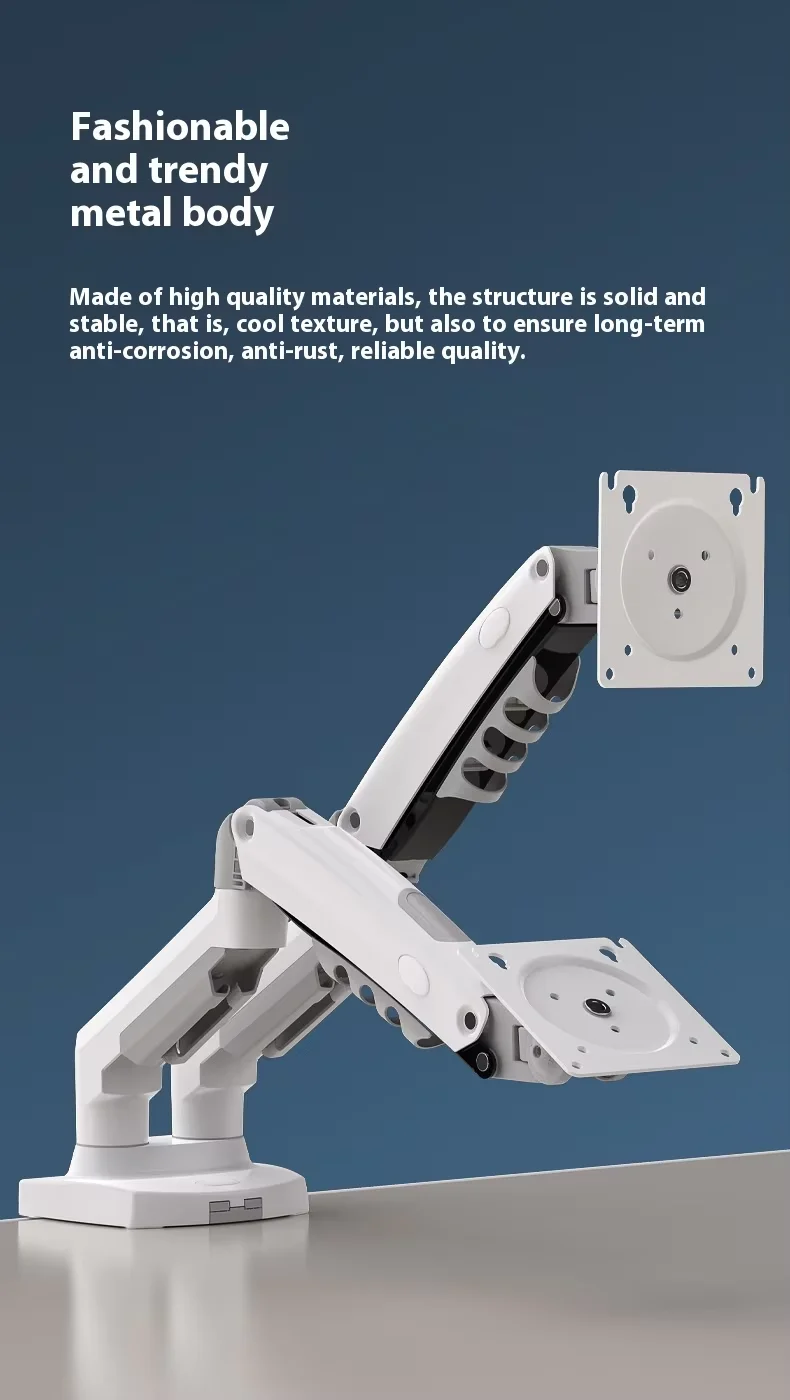

Material

Aircraft-Grade Aluminium Alloy

Color

Black

Frequently Asked Questions

Can both arms be adjusted independently?

Yes. Each arm on the NB ERGONOMIC F160 has its own gas spring and operates completely independently. As a result, you can set each screen to a different height, angle, tilt, and orientation without affecting the other arm.

Can I fit two 27-inch monitors side by side using the NB F160?

Yes, in most cases. Both arms share a single central base, and each arm extends up to 530mm (20.8″). As a result, the combined reach from the center is up to approximately 1060mm across — enough to accommodate two 27-inch monitors side by side. However, the exact fit depends on your specific monitor’s bezel width and how far apart you angle each arm. We recommend checking your monitor’s total width before purchase.

Can I use monitors larger than 27 inches with the NB F160?

Officially, the F160 is rated for 17–27 inch monitors up to 9KG per arm. However, if your monitor is larger but still within the 9KG weight limit, the arm may physically hold it. That said, NB ERGONOMIC does not guarantee stability for screens outside the rated size range. Furthermore, larger monitors have wider footprints that may exceed the arm’s comfortable extension range. For monitors above 27 inches, we recommend the NB ERGONOMIC A3 single arm, which is rated for 17–32 inch screens.

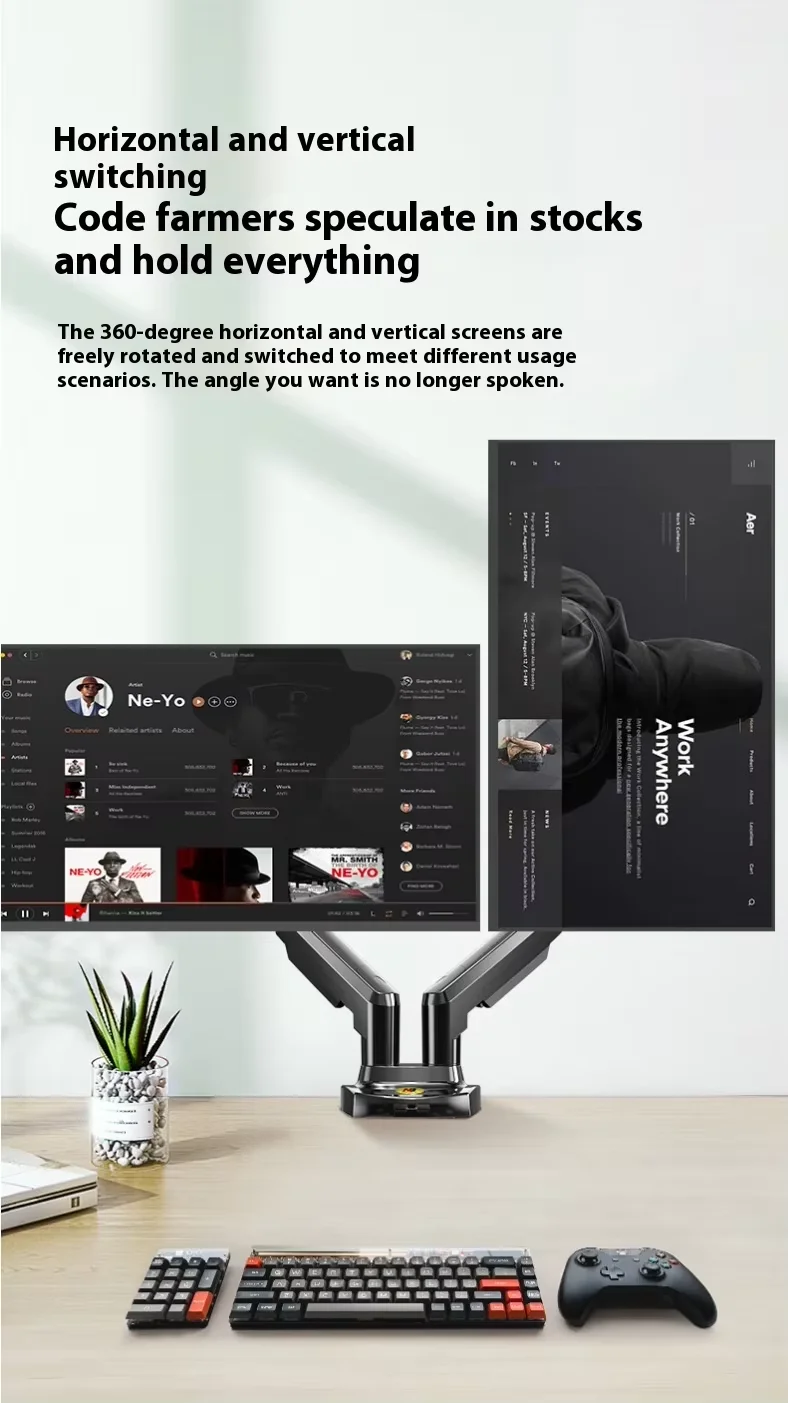

Does the NB ERGONOMIC F160 support portrait mode?

Yes. Each VESA head rotates 360°, so you can set either or both screens to portrait orientation independently at any time.

Do I need to drill my desk to install the NB F160?

No. The C-clamp method requires no drilling and clamps securely to desks up to 90mm thick. However, if you prefer a cleaner installation, the grommet method uses an existing desk hole. Both mounting hardware sets are included in the box.

My monitor has recessed VESA holes — will it fit?

The VESA plate is 118×118mm. For recessed VESA holes, you may need longer screws or spacers which are not included in the box. In addition, curved monitors should be checked for VESA plate compatibility before purchase.

What is the price of NB ERGONOMIC F160 Dual Monitor Arm in Nepal?

The price of NB ERGONOMIC F160 Dual Monitor Arm is NPR 9,999 only. You can purchase NB ERGONOMIC F160 Dual Monitor Arm from Backseatgaming.co with 1 year official warranty.

SKU: NB-F160 Categories: Monitor Arm, North Bayou Tags: monitor arm, nb f160, north bayou, north bayou f160 Brand: North Bayou

Weight	8 kg
Variant	F160 (Black), F160 (Black) with FP-2 Laptop Tray (Black)

Technical Specifications

Model	NB ERGONOMIC F160
Configuration	Dual Arm — Single Shared Base
Screen Size (per arm)	17–27 Inches
Load Capacity (per arm)	2–9KG (4.4–19.8 lbs)
Tilt (per arm)	+85° / -30°
Swivel (per arm)	±90°
Rotation (per arm)	360° (Landscape / Portrait)
Height Adjustment (per arm)	260mm (10″)
Max Extension (per arm)	530mm (20.8″)
VESA Compatibility	75×75mm / 100×100mm
VESA Plate Size	118×118mm
Spring Type	Gas Spring (Tension Adjustable per arm)
Installation	C-Clamp / Grommet — Single Base (both included)
Desk Thickness (Clamp)	Up to 90mm (3.54″)
Grommet Hole Diameter	10–50mm (0.39″–1.97″)
Cable Management	Integrated — through each arm
Material	Aircraft-Grade Aluminium Alloy
Color	Black

Based on 1 review

5.0 overall
